Driveway Road Erosion Control Geocellular Confinement Systems

Hdpe Plastic Cellular Confinement System Geocell For Driveway Road Erosion Control Manufacturer Price

Brief Introduction of  Geocell Confinement System

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Geocell Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Geocell Confinement System working principle

The principle of geocell is a honeycomb three-dimensional limit system, which may significantly improve the function of individual filling data in bearing in a large scope. Its principle is three-dimensional limit. Under the action of concentrated load, the active area is compressed and sunk, and the force is decomposed to both sides and transferred to the transition area, and the moderate area is transferred to the passive area. The passive area will deform and uplift

Geocell Confinement System Characteristic

1. It can expand and contract freely, transport can be folded, and can be stretched into a network during construction. It can be filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness.

2. The material is light, wear-resistant, stable chemical properties, resistant to light and oxygen aging, acid and alkali, suitable for different soil and desert conditions.

3. High lateral limit and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load.

4. The change of geocell height, welding distance and other geometric dimensions can meet different engineering needs.

5. Flexible, small transportation volume, convenient connection and fast construction speed.

Application of Geocell Confinement System:

1. It can expand and contract freely, transport can be folded, and can be stretched into a network during construction. It can be filled with loose materials such as soil, gravel and concrete to form a structure with strong lateral restriction and large stiffness.

2. The material is light, wear-resistant, stable chemical properties, resistant to light and oxygen aging, acid and alkali, suitable for different soil and desert conditions.

3. High lateral limit and anti-skid, anti deformation, effectively enhance the bearing capacity of subgrade and disperse load.

4. The change of geocell height, welding distance and other geometric dimensions can meet different engineering needs.

5. Flexible, small transportation volume, convenient connection and fast construction speed.

About Hengquan

  We have experience for more than 10 years. There are two product line for geogrid and geocell.  Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Factory  and Equipment:

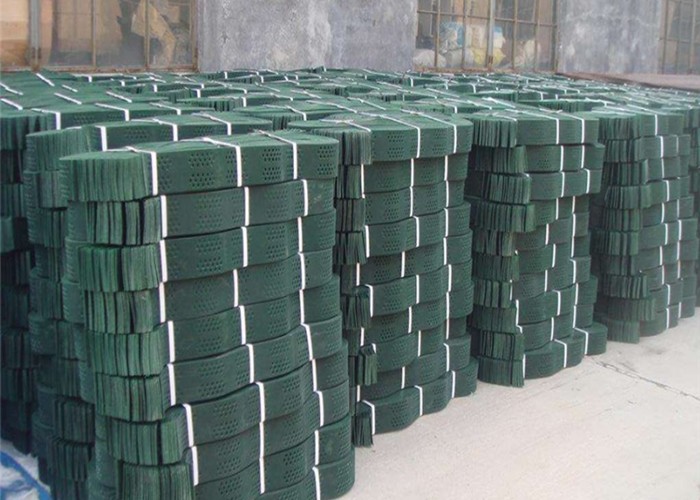

Product inventory:

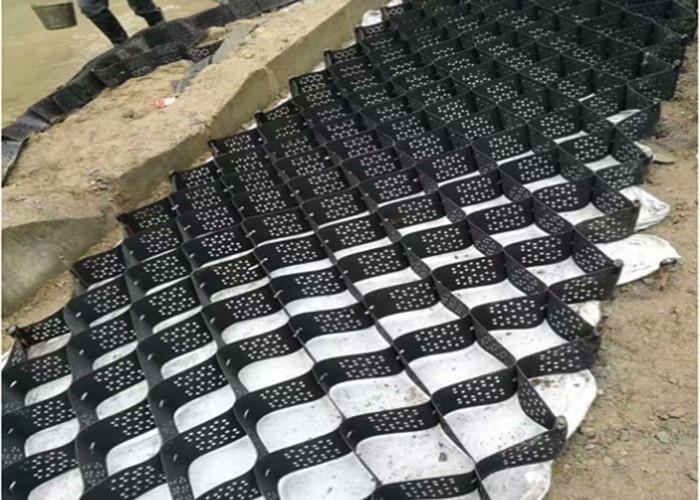

Application:

Download PDF: Catalog of Hengquan - geocell.pdf

Feel free to contact.

Leo.

Phone/Whatsapp/Wechat: 008615030705799

Email: leo@hengquan-china.com
